Pan, tilt and zoom (PTZ)

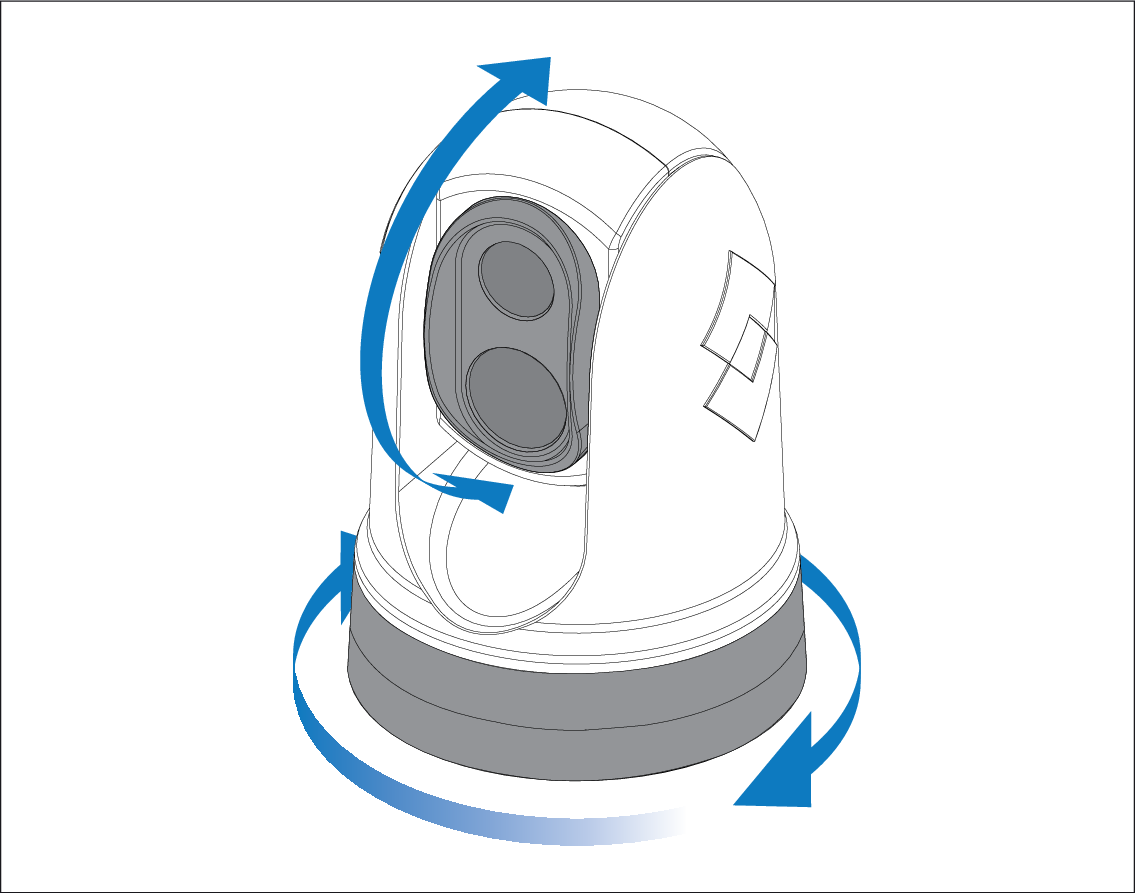

The camera controls allow for pan (azimuth) and
tilt (elevation) of the camera, as well as zoom (magnification) of
the thermal image.
Pan, tilt, zoom (PTZ)PTZOperationCamera controlsPan, tilt, zoom (PTZ)
Pan continuously through 360°.
Tilt to +110° / -90°, relative to the camera base.
Zoom the thermal camera image.
You can control pan, tilt, and zoom, using:
A compatible multifunction display / chartplotter: see Compatible MFDs / chartplotters
The joystick on a JCU remote keypad: see Camera operation via JCU
The camera’s Web browser interface: see Camera operation via Web browser
