Camera spares and accessories

The following spares and accessories are available for your product:

Spares Accessories

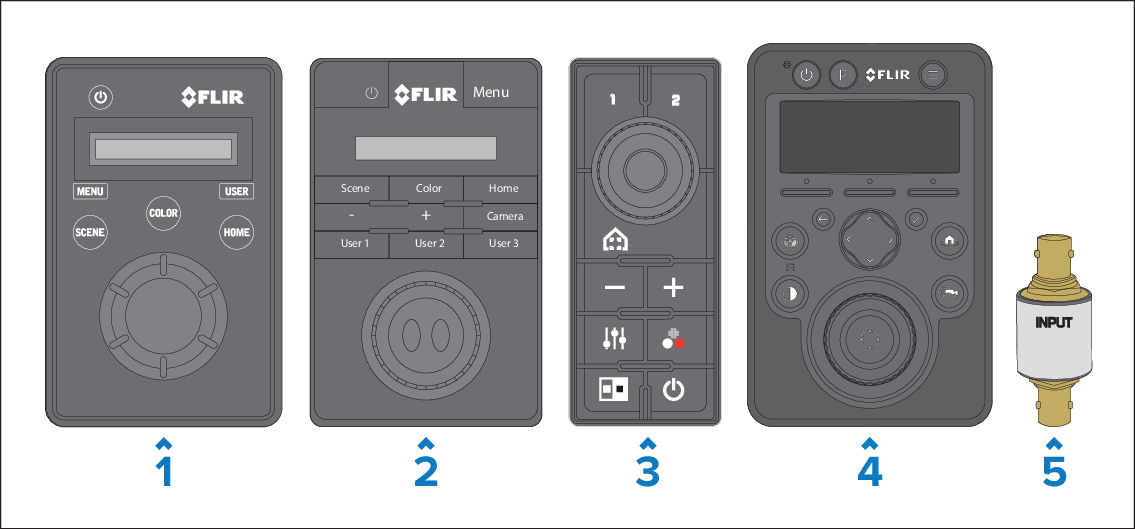

Description

1

(500–0385–00) — JCU-1 remote control unit.

2

(500–0398–10) — JCU-2 remote control unit.

3

(A80510) — JCU-3 remote control unit (with portrait and landscape keypad mats).

4

  • (E70695) — JCU-4 remote control unit.

  • (E70697) — JCU-4 remote control unit (without cabling).

5

(4142057) — HD video isolation transformer.

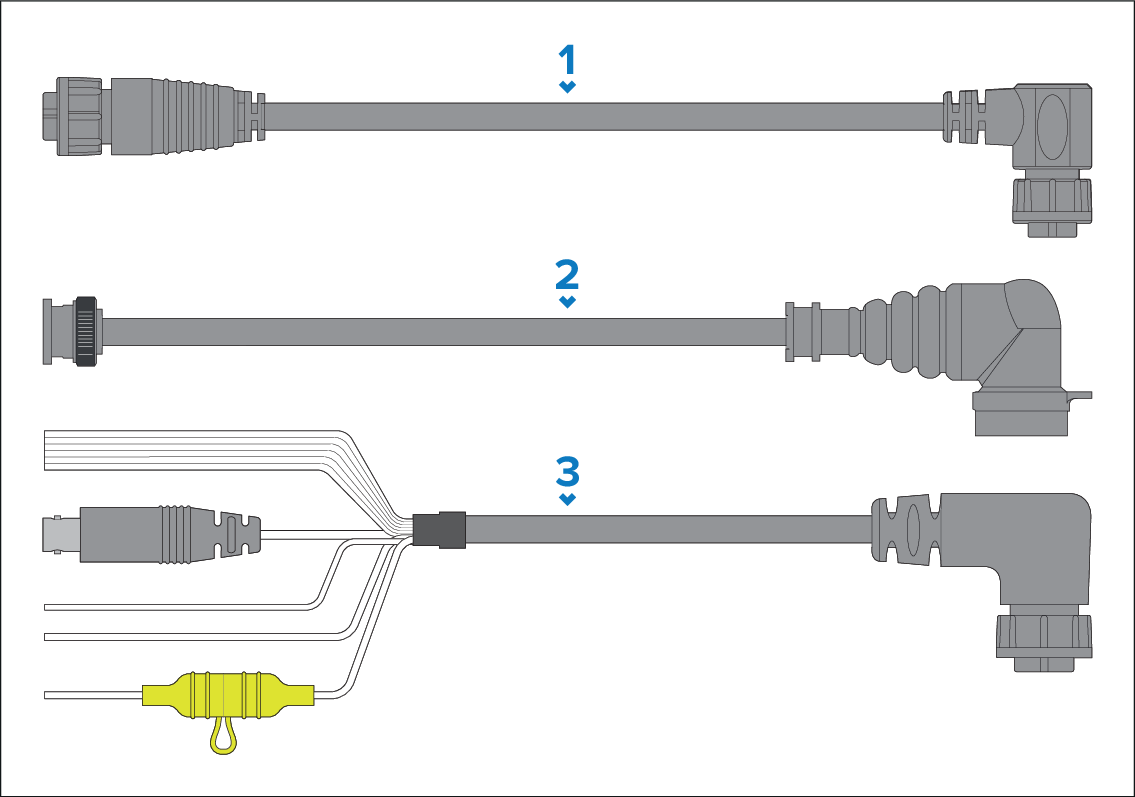

M300-Series camera cables

Description

1

Right-angled RayNet (Ethernet) to RayNet (Ethernet) cable

  • 0.5 m (1.64 ft) — A80670

  • 3 m (9.84 ft) — A80695

  • 10 m (32.81 ft) — A80673

2

Right-angled HD-SDI video cable (with BNC connectors)

  • 0.5 m (1.64 ft) — A80670

  • 3 m (9.84 ft) — A80693

  • 10 m (32.81 ft) — A80665

3

Right-angled power cable / NMEA 0183 / video cable

  • 0.5 m (1.64 ft) — A80670

  • 3 m (9.84 ft) — A80694

  • 10 m (32.81 ft) — A80666

A80667 — 0.5 m (1.64 ft) cable kit, includes:

Description

1

(A80670) — Right-angled RayNet (Ethernet) to RayNet (Ethernet) cable, 0.5 m (1.64 ft).

2

(A80668) — Right-angled HD-SDI video cable (with BNC connectors), 0.5 m (1.64 ft).

3

(A80669) — Right-angled power cable / NMEA 0183 / video cable, 0.5 m (1.64 ft).
