Parts supplied

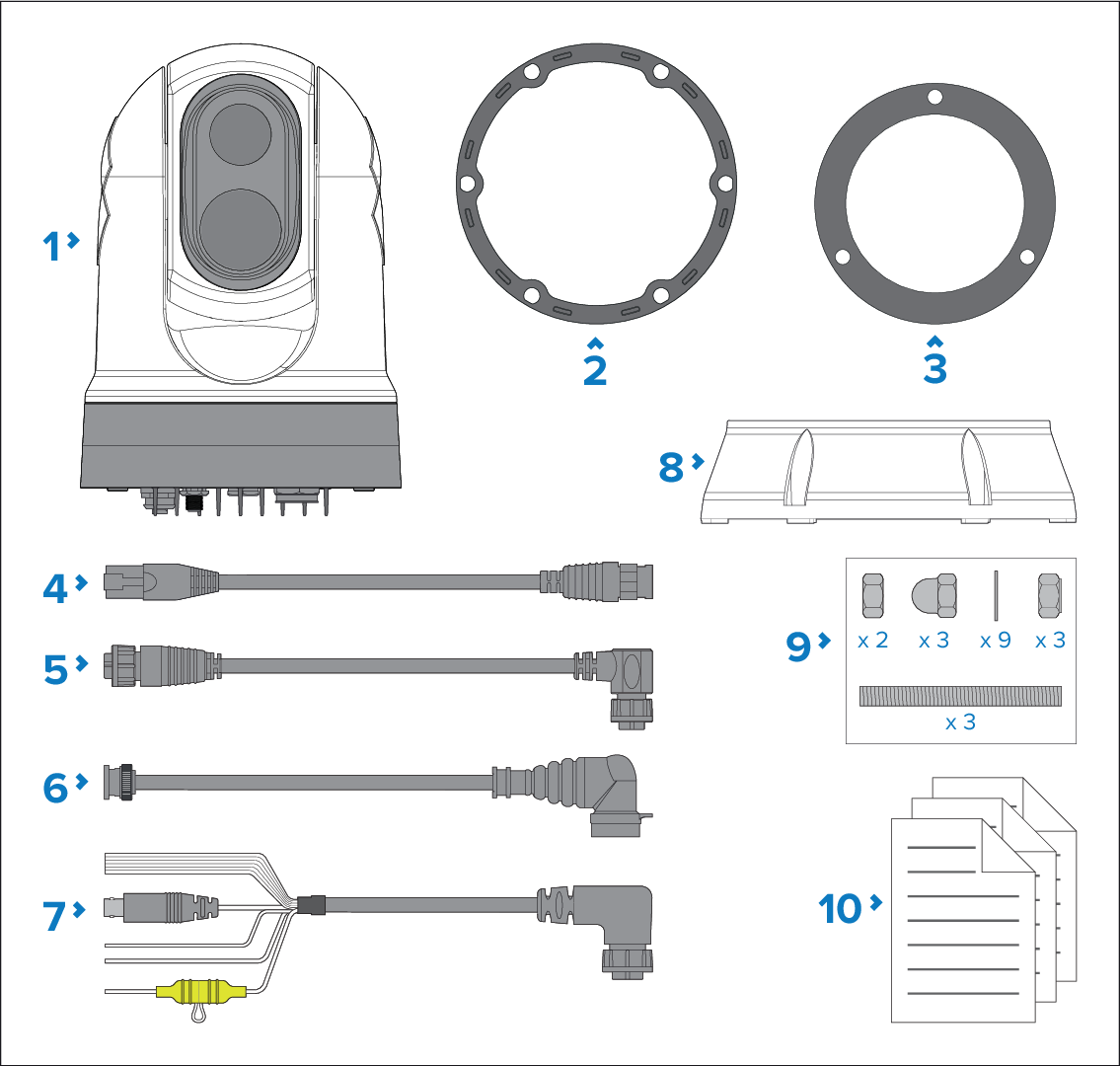

Box contents Parts supplied (M300)
Description |
|
|---|---|
1 |
M300-Series Camera |
2 |
Riser base-seal |
3 |
Camera seal |
4 |
RayNet (Ethernet) to RJ45 adapter cable, 100 mm (3.9 in) |
5 |
Right-angled RayNet (Ethernet) to RayNet (Ethernet) cable, 3 m (9.8 ft.) |
6 |
Right-angled HD-SDI video cable (with BNC connectors), 3 m (9.8 ft.) |
7 |
Right-angled power/NMEA 0183 / video cable, 3 m (9.8 ft.) |
8 |
Mounting riser |
9 |
(1) Fixings: 3x M6 threaded studs, 2x M6 flat nuts, 3x M6 dome nuts, 9x M6 flat washers, and 3x M6 nyloc nuts. |
10 |
Documentation |
(1) The supplied flat nuts must only be used to assist in winding the studs into the camera’s base. If required, you can fit the supplied dome nuts to the studs in order to cover exposed ends. Do NOT use dome nuts with a riser.
