    M300 Series

    InstallationDimensionsM300

    DimensionsSpecificationDimensions

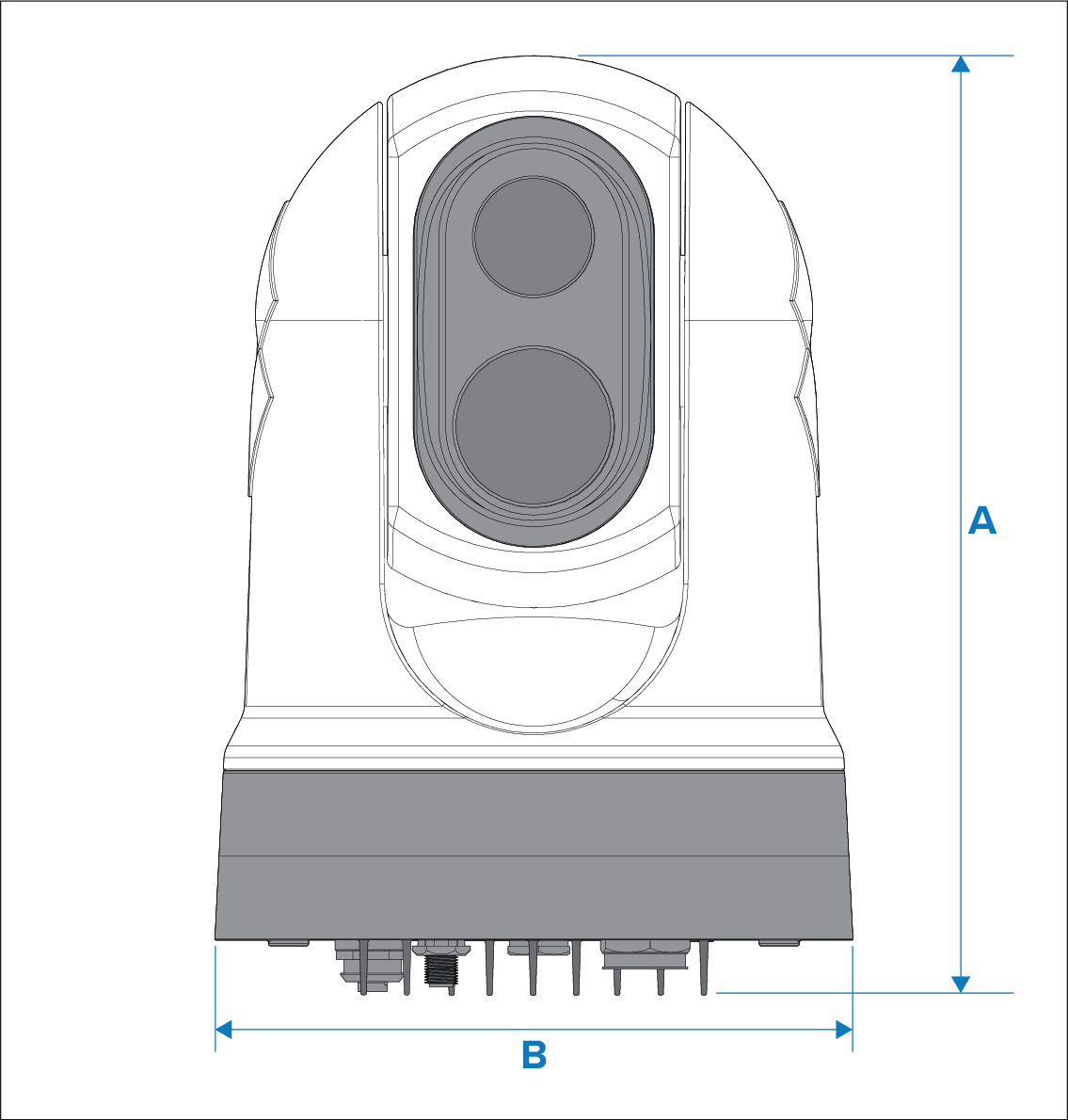

    Description

    A

    328.30 mm (12.93 in)

    B

    222.20 mm (8.75 in)
    Parent topic: Product dimensions
    Next topic: M300 Series with optional mounting riser
