Camera system with a Web browser and an optional JCU

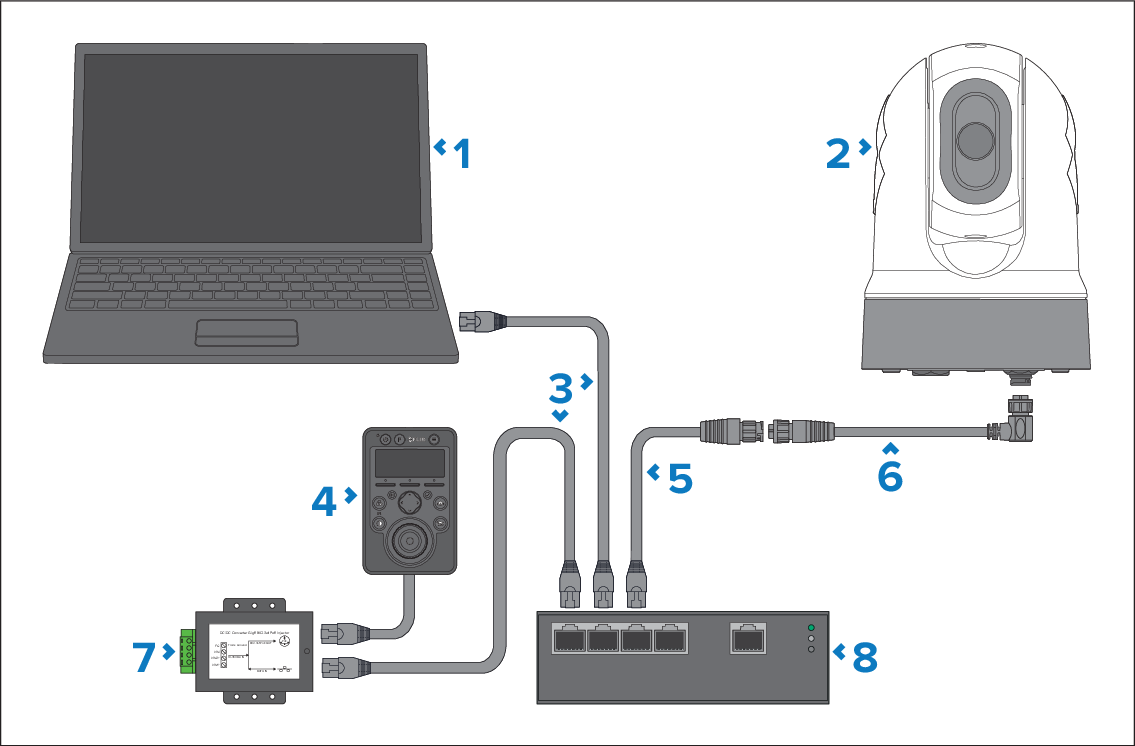

The network connection scenario illustrated below is primarily intended for configuration and diagnostic purposes.
Description |
|
|---|---|
1 |
Laptop (or another Ethernet-connected device running a Web browser), available separately from third-party retailers |
2 |
Camera |
3 |
RJ45 to RJ45 Ethernet cable, available separately |
4 |
Joystick Control Unit (JCU-4 currently illustrated), available separately |
5 |
RayNet (Ethernet) to RJ45 adapter cable (100 mm (3.9 in)), 1x supplied with camera |
6 |
Right angled RayNet (Ethernet) to RayNet (Ethernet) cable (10 m (32.8 ft.)), 1x supplied with camera |
7 |
PSE (Power Sourcing Equipment — e.g. a PoE Injector or PoE network switch) providing PoE (Power over Ethernet) to the JCU-4, available separately |
8 |
Ethernet network switch, available separately |
