Orientation of right-angled connectors

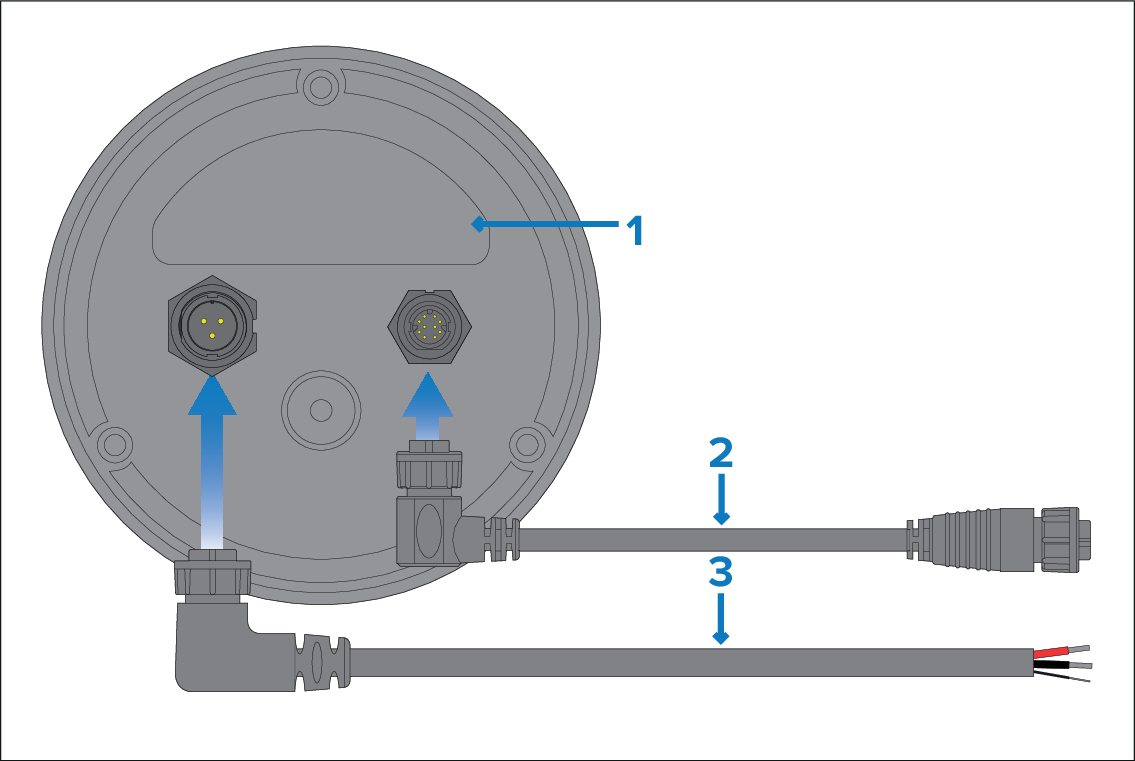

When making connections using the supplied right-angled power and network cables, ensure that you orient the connectors correctly with respect to the thermal camera base.

Viewed from the camera base, with the label uppermost, the right-angled power and network cables both leave the camera to the right, as illustrated.

1. Label on camera base.

2. Network cable with right-angled connector.

3. Power cable with right-angled connector.
