Parts supplied

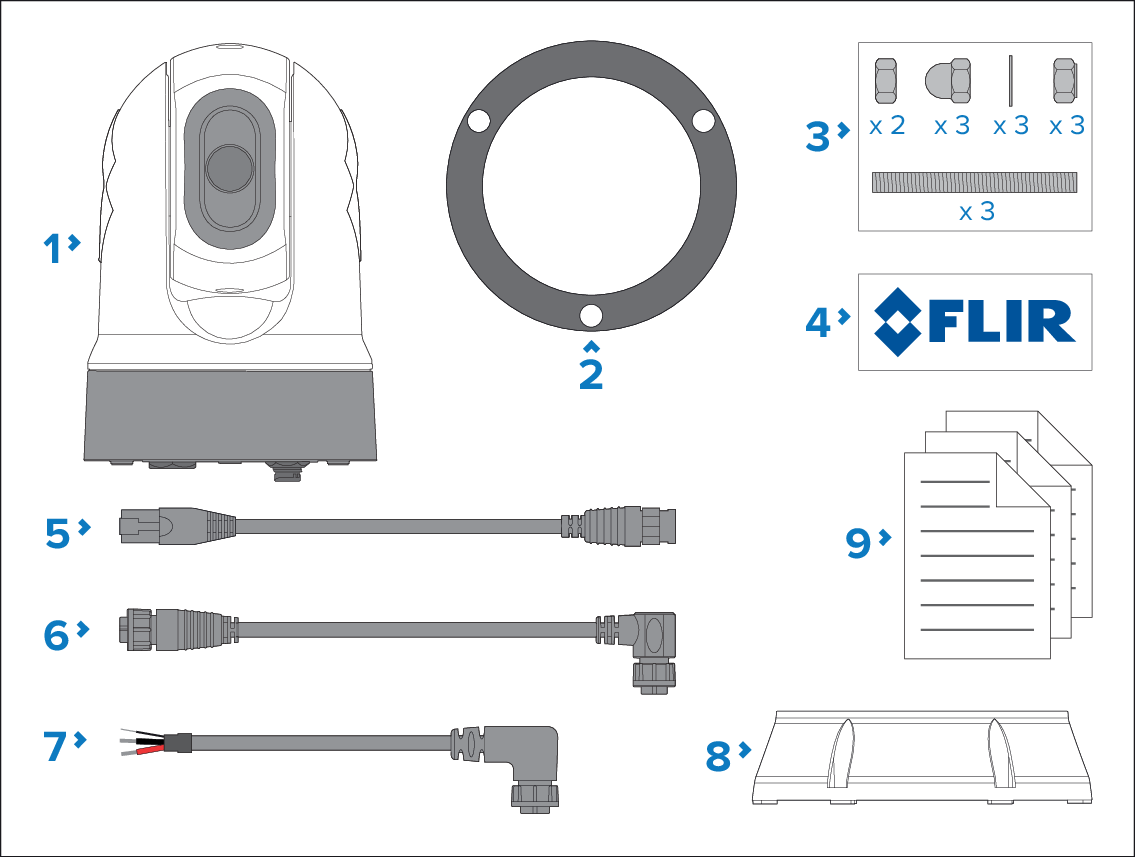

| Parts suppliedBox contentsWhat’s in the box | Description |
|---|---|
1 |
Thermal camera. |
2 |
Thermal camera base-seal. |
3 |
(1) Fixings: 3x M6 threaded studs, 2x M6 flat nuts, 3x M6 dome nuts, 3x M6 flat washers and 3x M6 nyloc nuts. |
4 |
2 x Self-adhesive decals (for ball-down (upside down) mounting only). |
5 |
RayNet (Ethernet) to RJ45 adapter cable, 100 mm (3.94 in). |
6 |
(2) Right-angled RayNet (Ethernet) to RayNet (Ethernet) cable, 10 m (32.8 ft). |
7 |
(2) Right-angled 3-pin power cable, 10 m (32.8 ft). |
8 |
Top-down riser kit (includes riser, riser base seal, and riser mounting template). |
9 |
Documentation pack. |
(1) The supplied flat nuts must only be used to assist in winding the studs into the camera’s base. If required, you can fit the supplied dome nuts to the studs in order to cover exposed ends. Do NOT use dome nuts with a riser.
(2) The supplied right-angled RayNet (Ethernet) and Power cables are suitable for mounting on surfaces up to 25.4 mm (1.0 in.) thick. When mounting on thicker surfaces, you may need to use RayNet (Ethernet) and Power cables with straight connectors (available separately).
For further details on network hardware and cables, refer to: Spares and accessories
